Double Ended Sampling Cylinders
Chemtron Sampling Cylinders are designed and manufactured to stringent customer require specifications to provide long performance life and maximum safety to the user. These cylinders are fabricated from seamless tubing or pipe with increased wall thickness in the threaded area, which prevents expansion when valves are installed. Completely formed ends maximize strength and eliminate potential leak paths. Internal sandblasting removes surface imperfections and removes foreign particles. Double-ended cylinders are available as standard in a variety of capacities.
Applications:
- Sampling Hydrocarbons in refineries and Petrochemical Plant
- Grab Sampling for chromatographic analysis
- Snubbers in reactor feed lines
- Surge accumulators in High Pressure Gas Systems
- High Vacuum Systems as experimental chambers and molecular sieves
- Chemical reaction vessels
Features & Benifits:
- Different types of capacities as per customer choice
- Cylinder ends come in 1⁄8˝, ¼ ˝, 3⁄8˝ and ½ ˝ NPT female connections (depends on capacity)
- Standard cylinders are formed from seamless drawn 304 SS, 316 SS or Monel® pipe or tubing
- Precision spinning operation eliminates internal pockets and provides easy fl ow of the sample
- All models are internally sandblasted to remove surface imperfections and eliminate foreign particles
- Special High Tolerance NPT Thread
Double Ended High Pressure Sampling Cylinders
| Part | MOC | Capacity (CC) | End Connection | Pressure Rating | Length XDiameter | |
|---|---|---|---|---|---|---|
| (Bar) | psi | |||||
| SC-100-4 | SS 316 L | 100 | ¼” NPT F | 125 | 1800 | 210 X 48.3 |

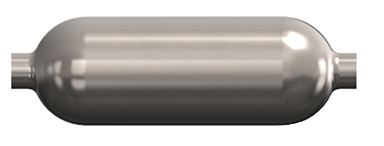

| SC-300-4 | SS 316 L | 300 | ¼” NPT F | 150 | 2150 | 240 X 60.5 |

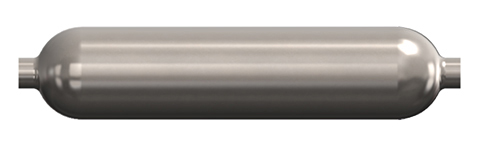

| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 200 | 2850 | 280 X 60.5 |
| SC-500-2 | SS 316 L | 500 | 1/2” NPT F | 200 | 2850 | 280 X 60.5 |
| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 350 | 5000 | 510 X 48.5 |

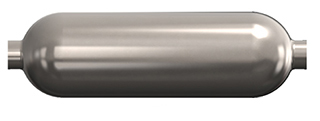

| SC-1000-4 | SS 316 L | 1000 | ¼” NPT F | 350 | 5000 | 275 X 88.9 |
| SC-1000-2 | SS 316 L | 1000 | 1/2” NPT F | 350 | 5000 | 275 X 88.9 |
Double Ended Low Pressure Sampling Cylinders
| Part | MOC | Capacity (CC) | End Connection | Pressure Rating | Length XDiameter | |
|---|---|---|---|---|---|---|
| (Bar) | psi | |||||
| SC-100-4 | SS 316 L | 100 | ¼” NPT F | 20 | 300 | 210 X 48.3 |
| SC-300-4 | SS 316 L | 300 | ¼” NPT F | 20 | 300 | 240 X 60.5 |
| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 20 | 300 | 280 X 60.5 |
| SC-500-2 | SS 316 L | 500 | 1/2” NPT F | 20 | 300 | 280 X 60.5 |
| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 20 | 300 | 510 X 48.5 |
| SC-1000-4 | SS 316 L | 1000 | ¼” NPT F | 20 | 300 | 275 X 88.9 |
| SC-1000-2 | SS 316 L | 1000 | 1/2” NPT F | 20 | 300 | 275 X 88.9 |
Transformer Oil Sampling Bottles
The Oil Sampling and Testing bottle is made up of Stainless Steel. The bottles are very sturdy and durable. All parts of the Bottle are made up of SS 304 Grade material. All the materials are tested and checked at our end to maintain the good quality of the product. Oil sampling bottle will be suitable for collecting oil samples from transformers and shunt reactors for dissolved gas analysis. Bottle will be of robust construction such that no damage occurs during frequent transportation of samples from site to laboratory.
| Sr. No. | Volume (ML) | Length (MM) | Diameter (MM) | Weight Kgs |
|---|---|---|---|---|
| 1 | 500 | 300 | 89 | 1.5 |
| 2 | 1000 | 400 | 89 | 1.9 |
| 3 | 1500 | 500 | 89 | 1.5 |
| 4 | 2000 | 570 | 89 | 1.9 |
| 5 | 2500 | 670 | 89 | 1.5 |
Features:
- Made From SS316/SS304 Schedule Pipe
- Pressure Tested by inert Gases
- Needle Valve pressure Rating-3000 PSI
- Hydrogen Loss Maximum 5% per week
- Supplied with on demand 1 meter flexible tube and carrying handle
