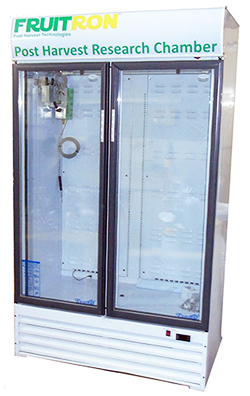

Post Harvest Research Chamber
Sustainable solutions for research organizations in the field of post-harvest technologies such as institutes, KVKS, UASs and local agricultural bodies.
It can be used for:
- Conducting research on ripening
- Conducting research on Controlled Atmosphere Storage
- To study the effect of waxing and other chemicals & gases
- To validate shelf life of fruit and vegetable
- To standardize and monitor the output quality of their fruits
Features:
- It comes with ports to introduce gases inside the chamber
- Glass doors for visual inspection of commodity from outside
- Adjustable trays as per users convenience
- Controls Temperature and RH
- Ultrasonic mist for humidity control
- Data logging onto USB and SCADA on customers PC
- Trends and graphs on HMI
- User programmable set points for each parameter
- Customizable as per client’s request
Sensing and Control Parameters:
Sr. No. | Sensor | Range | Status | Quantity |
---|---|---|---|---|
1 | Ethylene | 10 - 50000 PPB or 0.01 - 50.0 PPM | Online | 1 |
2 | CO2 | 0.0 - 5.0 % | Online | 1 |
3 | Oxygen | 0.0 - 25.0% | Online | 1 |
4 | Temperature | 0.0 - 50.0 ⁰C | Online | 1 |
5 | RH | 0 - 100 % | Online | 1 |
6 | Temperature PULP | 0.0 - 50.0 ⁰C | Portable | 1 |
7 | Ethylene | 0 - 500 PPM | Portable | 1 |
