The Most Advanced ripening controller with complete Ripening Management Software
RS 485 based Digital sensor transmission for precise value
Integrated chamber conditioning features
Four dedicated Ripening processes, Precool, Dose, Vent and Holding
Universal communication (RS 485/Ethernet) for integration with other control systems
Fruitron Ripening Management System is the state-of-the-art ripening management controller that is highly efficient in fruit ripening in terms of power consumption and gas usage. The entire process is automated with sensors and proprietary logic which yields premium ripened fruits with minimal labour dependency
The complete ripening process is data logged onto a USB drive, HMI also generates trends and records every component working hours for regular maintenance. The controller can also be hooked up to a GPRS modem and the data can be populated onto a web server by which the user can monitor the chambers from any internet device

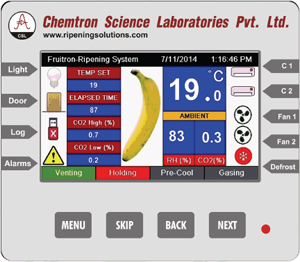

The colour of the fruit changes as per the ripening stage which gives a clear indication of the ripening status. There are Alarms and Indicators present in the display where the process parameters are indicated, alarms are activated if any deviation of the process is identified. A user can convey the acknowledgement of an alarm using the touch screen & also by the hardware switches on the panel

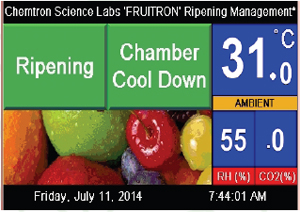

The intuitive touch display has been designed to show the user all the information of the process on a single screen. The display indicates Temperature, RH, CO2 and Ethylene values according to the process
Upto 30% energy efficient in ripening temperature control

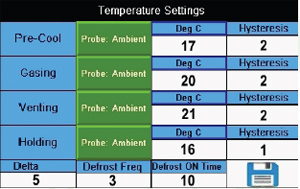

Process based temperature control
Temperature control on ambient sensor, pulp sensors or on return line sensors
Degree Celsius or Degree Fahrenheit mode
Dual compressor logic with smart switching
Independent indoor fan control
Interval and time based Defrost
Auto-process shutoff when chamber door is open for better efficiency and heat losses

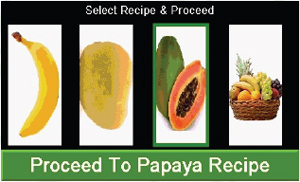

Up to 3 predefined recipes for universal application and 1 user programmable manual recipe
Process based Temperature and RH control
Smart Ethylene injection based on chamber size and quality
Precise CO2 Control
Fuzzy logic failsafe for Ethylene and CO2 control on sensor failure
Run time programmable temperature and RH control for target fruit
User controlled CO2 control range
User controlled ripening duration

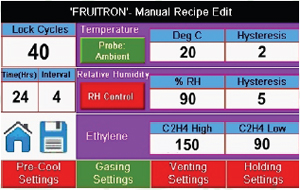

Provision for making user based recipe
User controlled Ethylene injection control range
Interval based ethylene injection
SPECIFICATIONS
GENERAL
Supply
AC-230V, single phase, 50 Hz
Wattage
50W
Display
4.3” colour touch HMI
Gas control & measurement
Completely Automatic with no manual intervention
Weight
1.8 kg
TRANSMITTERS
Ethylene**
CO2
Temperature
RH
Input Supply
24 V DC
3.4 V DC
5 V DC
5 V DC
Analog Out
4.70 mA to 20 mA
RS 485
RS 485
Capacitive
Dimension
100 * 70 * 50 mm
On Sensor Module
On Sensor Module
On Sensor Module
Range
0 – 500 ppm
0 – 3.2 %
0 – 100 ⁰C
0-98 %
ETHYLENE CONTROL
Ethylene control
Sensor based ** / proprietary gas injection logic (** optional)
Dosing time
User settable from 1-99 hrs
Dosing method
Cyclic (user settable intervals)
Redundancy level
Manual override/Auto change over to fuzzy logic
Alarms and relay
Display alarm
Sensor specification
Electrochemical
Range
0-500ppm
Response time
<140 seconds
Analog output
2.25 ± 0.65 μA/ppm
Resolution
1 ppm
CO2 CONTROL
CO2 control
Sensor based
Control time
Preset recipe / User settable
Controlling logic
Profile/ Interval based
Redundancy level
Manual Override (Through HMI)/Auto changeover to fuzzy logic
Alarms and relay
Alarms on HMI
Sensor Type
NDIR
Range
0 – 3.2%
Accuracy
1 % full scale
Response time
30 sec
Digital output
USART
Resolution
0.1 % full scale
HUMIDITY CONTROL
Humidity control
Sensor based
Control time
Recipe Based / User settable
Controlling logic
Between user set limits
Redundancy level
NA
Alarms and relay
Alarms on HMI
Sensor specification
Capacitive
Range
0 – 100%
Accuracy
2 % full scale
Response time
20 sec
Analog output
NA
Resolution
0.1 % full scale
TEMPERATURE CONTROL
Temperature control
Sensor based on Pulp / Ambeint / Return line
Control time
Recipe Based / User settable
Controlling logic
On – Off control
Redundancy level
Through Software
Alarms and relay
High & Low alarm
Sensor specification
Semi-Conductor
Range
0 – 50 ⁰C
Accuracy
0.4 ⁰C full scale
Response time
10 sec
Analog output
NA
Resolution
0.1 ⁰C
Up to 3 predefined recipes for universal application and 1 user programmable manual recipe
Process based Temperature and RH control
Smart Ethylene injection based on chamber size and quality
Precise CO2 Control
Fuzzy logic failsafe for Ethylene and CO2 control on sensor failure
Run time programmable temperature and RH control for target fruit
Smart Sensor Module
Easily attachable IP-68 communication wire connectors
Digital communication for long distance
IP-65 housing designed for harsh environment
Pulp Sensor-1
4 analog inputs for other sensors like ethylene, oxygen, ammonia etc.
Pulp Sensor-2
CO2 Sensor
Ambient Temperature and RH sensor

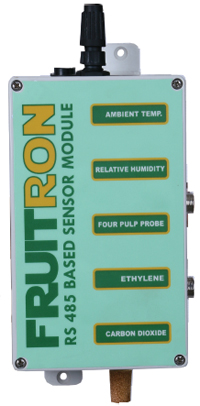

Most comprehensive sensor module measuring all key parameters responsible for uniform ripening which are Temperature, RH, Pulp, Ethylene and CO2
Sensor module communicates on RS 485 hence no transmission losses over long distances very typical to cold storages
IP-65 housing designed for harsh environment which are prevalent for ripening chambers
SPECIFICATIONS
GENERAL
Supply
24 V DC, single phase, 50 Hz
Wattage
8W
Dimensions
200mm x 120 x 75mm
Weight
400gm
Communication
RS 485 RTU (2 wire config)
Inputs (4 + 8)
4 RTD and 8 Analog 4-20 mA / 0-10V DC
Operating Temperature and Humidity
0 - 60°C and 0 - 95% RH for the unexposed parts
AMBIENT TEMPERATURE SENSOR
Operating Principle
Band Gap
Measuring Range
0-50°C
Accuracy
0.1°C
Response Time
5 seconds
Resolution
0.1°C
Output Signal
Digital SPI
PULP TEMPERATURE SENSOR
Operating Principle
PT 100 4 wire configuration
Measuring Range
0-50⁰C
Accuracy
0.1°C
Response Time
5 seconds
Resolution
0.1°C
Output Signal
Resistance
RH SENSOR
Operating Principle
Capacitive
Measuring Range
0-98%
Accuracy
1%
Response Time
5 seconds
Resolution
1%
Output Signal
Digital SPI
CARBON-DIOXIDE SENSOR
Operating Principle
NDIR
Measuring Range
0 - 3.2% / 0 to 32000 PPM
Accuracy
± 0.1% FS
Response Time
2 minutes by 90% diffusion sampling method model
Operating Temperature & Humidity
0 - 50°C and 0 - 95% RH Non condensed
Resolution
0.01% or 100 PPM
Output Signal
PWM Output on USART
ETHYLENE SENSOR
Operating Principle
0-500 PPM
Accuracy
± 10 PPM
Response Time
30 Seconds
Operating Temperature & Humidity
0 - 50°C and 0 - 95% RH Non condensed
Power Supply
12 V DC ±5%
Resolution
1 PPM
Output Signal
4-20 mA

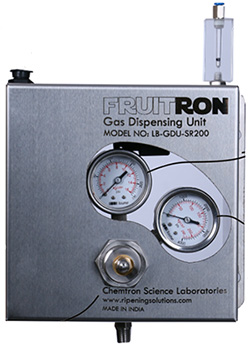

Gas Dispensing Unit
IP-68 weather proof connectors for gas release mechanism
Flow indicator for gas outlet
All-weather stainless steel housing
Outlet Pressure Gauge
Inlet Pressure Guage
Constantly fixed flow mechanization
Flow adjustment Knob
Chemtron proprietary instant fit adaptors
Comes with all-weather stainless steel housing with diffusion resistant constant flow apparatus with precision control
The dispensing unit has pressure gauges for inlet and outlet pressure, comes with a Chemtron proprietary instant fit adaptors which connect to any C10 valve
Regulator comes with precision seals like kalrez and has safety release valve for over pressure scenarios
Weather proof connectors for electrical connection
Flow indicator indicates the gas that is going inside the ripening chamber
Ripylene
Aluminium high pressure canister
Universal C10 Valve
Weight with gas less than 900 gms
Packed with enough gas to ripen up to 200 tons of fruit
Cheap to transport, easy to carry and simple to use
Chemtron manufactured gas specific for ripening application
Ripylene is specially packed keeping in mind to provide enough gas to last to ripe up to 200 tons on fruit
With special in-house filling procedure a single canister eliminates the use of gensets and traditional cylinders
Our manufactured gas is cheap, high in purity and is approved to be used for fruit ripening
