Product Range

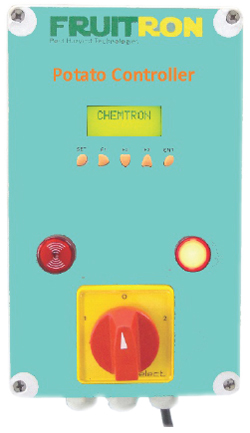

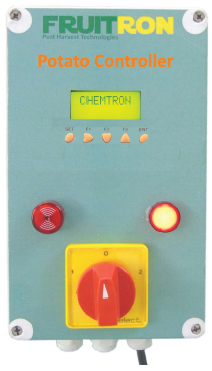

Potato/Mushroom Controller
The most Economical Solution for Potato Storage. Measures & controls all key parameters for potato storage rooms.
- RS 485 Based Sensor Module
- NDIR Based CO2 Sensor
- 4 Relays for all parameters
- Dual mode : auto / manual
- CO2 Level : 0 - 32000 PPM
- Air Temperature : 0 - 50.0 Deg C
- Pulp Temperature : 0 - 50.0 Deg C
- Relative Humidity : 0 - 95%

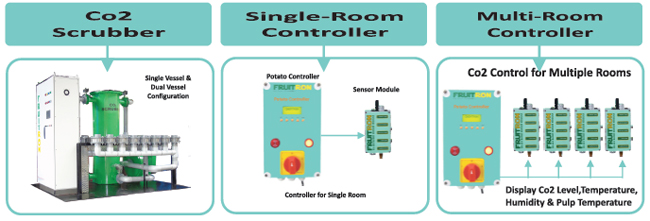

Our Other Products for Potato Cold Storages
Monitors and controls CO2, Temperature & Rh.
CO2 Control:
- Monitors CO2 build up inside the storage (Range- 0%- 3.2%)
- NDIR CO2 Sensor with auto air calibration for long life
- User settable CO2 control set points as per the commodity requirement
- Potential free relay output to drive the ventilation system
- Auto change over to time-based control in case of sensor failure
- Hooter with indicator enunciation for alarms
Temperature Control:
- Monitors ambient and pulp temperature of the cold room ranging 0-50 DegC.
- IC based ambient sensor and RTD based pulp temperature sensor with SS316 probes
- Supports up to 4 pulp temperatures probes for monitoring temperature at 4 different zones in the room
- Potential free relay output to drive contactors / solenoid of the refrigeration system
- Hooter with indicator enunciator for alarms
Rh - Control:
- Monitors ambient relative humidity ranging 0-98%
- Capacitive IC based sensor with brass filter
- Potential free relay output to drive contactors / solenoid of humidification system
- Hooter with indicator enunciator for alarms
Features:
- Weather proof, compact wall mounted controller body
- RS 485 based sensor module for digital sensor transmission

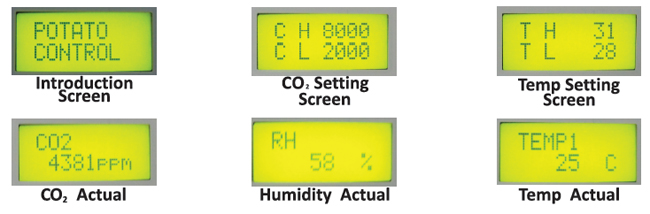

- LCD Display
- Control on auto and manual mode
