Post Harvest Research Chamber



Controlled Atmosphere & Research Chambers for Ripening and Post Harvest Research

Chemtron has Research Chamber for Controlled atmosphere and Ripening with Post Harvest Research facility. These chambers are specially made to do Research work on storage of perishable, commodities and developed pattern Ripening Systems for fruits.

Benefits & Features
  • Easy & safe operation
  • High performance
  • Corrosion resistant
  • Long service life
  • Precise & excellent workability
  • Low power consumption

Features
  • Automatic control panel for controlling temperature, O2, CO2 and moisture levels
  • Sturdiness
  • Energy efficiency
  • Hassle free functioning
  • Flawless control atmosphere

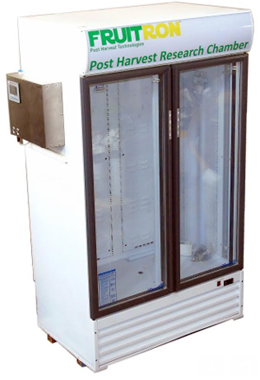

We bring forward an innovative product for the first time in India in the form of ripening research chamber for research organizations who have been trying hard to give sustainable solutions in the field of post-harvest technologies.

The chamber has a volume of 550 litres and will control ethylene, temperature and humidity and monitoring of the same along with O2, CO2 and pulp temperature.

Specifications
Item Range Quantity Status
Ethylene 10-50000 PPB or 0 -500 ppm 1 Online
CO2 0-5 % 1 Online
Oxygen 0-25% 1 Online
Temperature 0-50 °C 1 Online
RH 0 - 100 % 1 Online
Temperature PULP 0-50 °C 1 Online
Ethylene 0-500 PPM 1 Portable
CO2 0-100% 1 Portable
Size of Chamber 550 Litres - -
Dimensions 1mx1mx1m - -

Applications
The post-harvest research chamber is used to do research on fruits for their degradation and ripening process. Various factors such as ethylene, co2, o2, temperature, relative humidity and temperature of the pulp can be studied for various fruits, vegetables etc. The chamber can also be extended to study the effect of N2, CO and various other gases on fruits, plants and vegetables.

Who can use these chambers?
These chambers can be used by research institutes, Krishi Vigyan Kendra, University of Agricultural Sciences and local agricultural bodies.

These chambers can also be used by those companies who have ripening chambers and regularly need to standardize and monitor the output quality of their fruits. These studies will help in avoiding the losses in the ripening process.

Cold storage can use this chamber to study the effects of various atmospheric components on the perishable stored goods.

Applications
  • Agricultural Research
  • Ripening Research
