This gas analysers for CA is a complete solution for Controlled Atmosphere which can perform the functions of measurement of the parameters like monitoring & control of CO2, monitoring & control of ethylene, CO2 scrubber on and off operation. The sensor module also measures temperature and humidity in every room. There is a common gas analyser for measure CO2 and ethylene where the sampling of gas from every room is done independently.

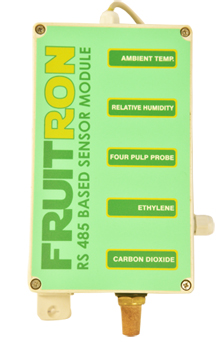

Sensor Module

• Smart Sensor module with RS 485 data communication port
• Choice of 4 Temperature Sensors i.e. ambient and up to 4 Pulp probes
• RH Sensor with Temp compensation
• Choice of adding up to 8 further more sensors
• IP 56 design for high humidity environments

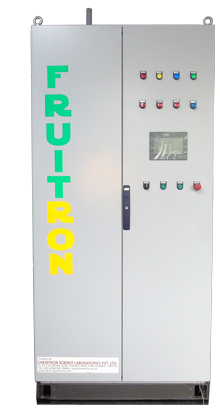

Gas Analyzer

• Independently analyzes the atmosphere of the cold room by sampling as from of all CA rooms
• Continuous monitoring of temperature from multiple zones of a CA chamber (up to 5) for sensor failure, indoor fan failure and other refrigeration failure redundancies
• Carbon Dioxide and Ethylene monitoring, control and alarms for long storage of the commodity
• Self-Calibrating and auto tuning sensors
• One panel can support up to 12 rooms which reduces cost and maintenance
