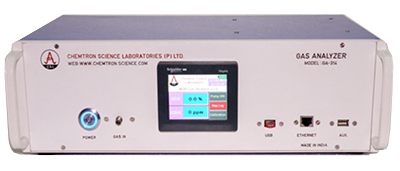

Bench Top Gas Analyzers
Chemtron offers a wide array of high quality Gas Analyzers that are specially designed for examining the different types of gases. These instruments are precisely designated by making use of premium quality materials and latest techniques to match with the international quality norms. These range of analyzers are widely accredited for its salient features like excellent functionality, data logging, alarms, battery backup, controls, high quality, rigidity, durable service life, fine finish, simple operation, energy efficiency and low maintenance. The analyzers are widely utilized in various sectors like chemical & gas industries, laboratories and refineries.
Features:
- Bench-Top
- Sampling through suction pump
- Multi Stream
- Colour Touch 3.5” HMI
- Trends
- Data Logging with time stamp
- USB Printing Port
- Battery Backup
We can analyze the following gases (kindly contact us if you need customized solutions)
| Sr. No. | Gas | Range |
|---|---|---|
| 1. | Carbon dioxide (CO2) | 0 – 10 / 20 / 100% vol |
| 2. | Oxygen (O2) | 0 – 30 % vol |
| 3. | Ammonia (NH3) | 0 – 20 / 200 ppm |
| 4. | Methane (CH4) | 0 – 100% vol |
| 5. | Ethylene (C2H4) | 0 – 200 / 500 / 2000 ppm |
| 6. | Hydrogen Sulphide (H2S) | 0 – 200 ppm |

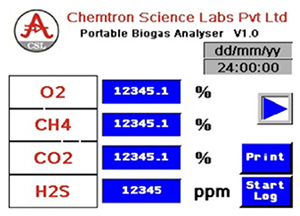

Default Display for Gas Analyzer

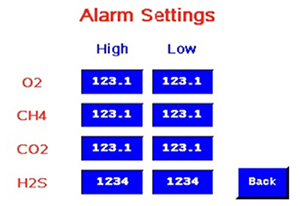

Alarm Settings for Gas Analyzer

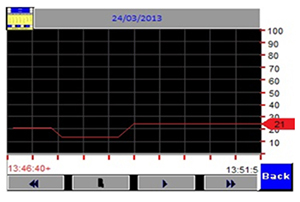

HMI Trends for Gas Analyzer
| Specification | |
|---|---|
| Operating Pressure | Upto 1.25 bar (Absolute) |
| Ambient Temperature | 6° C to 50° C |
| Relative Humidity | Maximum 75% |
| Product Specifications | |
| Detector | Multi Gas |
| Detection | PPM / LEL / % |
| Number of Channels | Up to 8 Channels |
| Streams | Up to 2 Streams |
| Sensing Type | Diffusion/ Suction Type |
| Display | 3.5”Colourtouch HMI |
| Pumps | 5 LPM (Optional) |
| Alarms | HMI / Buzzers / Indicators / Controls |
| Battery | Up to 1 hour (Optional) |
| Data Acquisition System | |
| Data Logging Device | Memory Stick (Excel Format) |
| Printer Port | USB/Network Printer |
| Trends | On HMI (Runtime) |
| Electrical | |
| Supply Voltage | AC-230V, Single Phase |
| Frequency | 50-55 Hz |
| Enclosure Details | |
| Dimensions | 300 x 320 x 170mm (l x b x h) |
| Weight | 2 kg |
| Exterior Finish | Powder Coating (RAL-7035) |
| Power Chord | 3-PIN PLUG, 1.5Mtr |
