PLC Based Automatic Ripening Systems

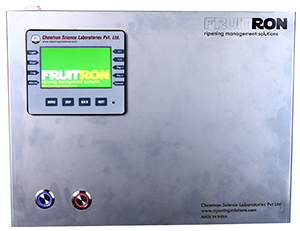

Fruitron 2.0

Dedicated automatic PLC based ripening controller for 1 room.

Automated solution by Chemtron, best suited for ripeners targeting premium quality ripened fruits with precision control datalogging.

This solution is best suited for ripening chambers of 12 to 40 tons of fruit capacity.

The controller controls temperature, RH, Ethylene and CO2 based on sensor feedback which ensures repetitive and most efficient ripening process.


Features:
  • One dedicated controller with colour touch interface with trends, graphs and USB data logging
  • Two independent indoor fan control, 2 compressor control
  • Three pre-set fruit ripening recipe and 1 manual recipe
  • Four defined process precool, dosing, venting and post cool
  • Defrost and compressor protection logic
  • Energy saving by smart control logics
  • Audio visual alarms
  • Auto fall back to time based operations if sensor fails
  • SCADA monitoring possible



Specifications:
  • Enclosure: SS316
  • Mount: Wall
  • Input: 230 VAC, 50 Hz.
  • Control output: 230 VAC
  • Number of control output: 8 per room

Parameter Monitor Control
Temperature Ambient Temperature with range 0 to 50 degC. Pulp Temperature (upto 4 probes) which can be inserted into the fruit. Controls up to 2 indoor units and 2 outdoor units.
Can operate solenoids for Ammonia based refrigeration.
Relative Humidity Ambient RH between 10 to 98 % Operates humidifiers which are controlled by sensor feedback and hysteresis logic.
Ethylene Measures Ethylene in the range 0 – 200 ppm. Operates Gas Dispensing Unitsthat releases desired Ethylene into the ripening chambers.
Carbon Dioxide Measures CO2 in the range 0 – 3.2%. Operates CO2 and fresh air dampersto remove the excess CO2 build up in the chamber.


Four Room PLC Ripening System

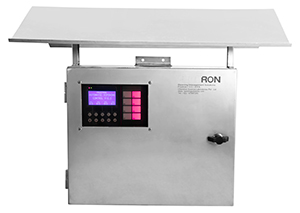

Fruitron 3.04FA

Automatic PLC based ripening controller for 4 room.

Automated solution by Chemtron, best suited for ripeners targeting premium quality ripened fruits with precision control datalogging.

This solution is best suited for ripening chambers of 12 to 40 tons of fruit capacity.

The controller controls temperature, RH, Ethylene and CO2 based on sensor feedback which ensures repetitive and most efficient ripening process.


Features:
  • Dedicated controller with alphanumeric display
  • Weather proof enclosure for outdoor installation
  • One control output to control refrigeration contactor
  • Four defined process precool, dosing, venting and post cool
  • Visual alarm
  • Auto fall back to time based operations if sensor fails
  • SCADA monitoring possible


Specifications:
  • Enclosure: SS316
  • Mount: Wall / Floor
  • Input: 230 VAC, 50 Hz.
  • Control output: 230 VAC
  • Number of control output: 4 per room

Parameter Monitor Control
Temperature Ambient Temperature with range 0 to 50degC. One control output to control refrigeration contactor.
Can operate solenoids for Ammonia based refrigeration.
Relative Humidity Ambient RH between 10 to 98 % Operates humidifiers which are controlled by sensor feedback and hysteresis logic.
Ethylene Measures Ethylene in the range 0 – 200 ppm. OperatesGas Dispensing Unitsthat releases desired Ethylene into the ripening chambers.
Carbon Dioxide Measures CO2 in the range 0 – 3.2%. Operates CO2 and fresh air dampersto remove the excess CO2 build up in the chamber.




10 Room PLC Ripening System

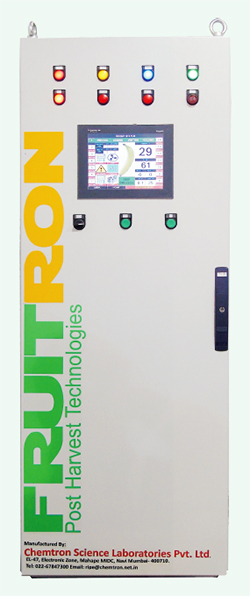

Fruitron Centralized Management Systems

Central panel supports up to 10 rooms.

Automated solution by Chemtron, best suited for ripeners targeting premium quality ripened fruits with precision control datalogging.

This solution is best suited for ripening chambers of 12 to 40 tons of fruit capacity.

Completely automated that controls parameters based on sensor feedback which ensures repetitive and most efficient ripening process.

Monitor parameters such as Temperature, RH, CO2 and Ethylene.

Control Temperature, RH, CO2 and Ethylene.

Sampling based Ethylene detection.

PLC, HMI and SCADA based system.

Data log on customer’s computer.

Potential free relay output to control Temperature and RH.


Features:
  • Centralized panel with colour touch interface of 7” with trends, graphs and USB data logging
  • Simultaneous Independent control of all rooms
  • Four defined process precool, dosing, venting and post cool
  • Troubleshooting and diagnostics mode present
  • Energy saving by smart control logics
  • Audio visual alarms.
  • Auto fall back to time based operations if sensor fails
  • SCADA monitoring


Specifications:
  • Enclosure: MS IP56 Powdercoated panel
  • Mount: Floor
  • Input: 230 VAC, 50 Hz.
  • Control output: 230 VAC
  • Number of control output: 4 per room

Parameter Monitor Control
Temperature Ambient Temperature with range 0 to 50 deg C.
Pulp Temperature (upto 4 probes) which can be inserted into the fruit.
Controls up to 2 indoor units and 2 outdoor units.
Can operate solenoids for Ammonia based refrigeration.
Relative Humidity Ambient RH between 10 to 98 % Operates humidifiers which are controlled by sensor feedback and hysteresis logic.
Ethylene Measures Ethylene in the range
0 – 200 ppm.
Detection is based on sampling where air samples are sucked from the ripening room andanalyzedinside the panel.
OperatesGas Dispensing Unitsthat releases desired Ethylene into the ripening chambers.
Carbon Dioxide Measures CO2 in the range
0 – 3.2%.
Operates CO2 and fresh air dampersto remove the excess CO2 build up in the chamber.
