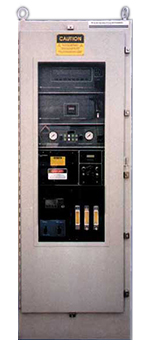

Calibration gas standards for Carbon Dioxide Quality Check (CDQC) Analyzsrs & GCs
Carbon Dioxide is usually used in food & beverages industry to preserve the quality of food products and carbonization of beverages.
Because of high demand of improved quality and purity of Carbon Dioxide (CO2), manufacturer must compulsorily install the impurity check analyzers or quality check analyzers. It is very challenging for analyzer service providers to calibrate these analyzers for given impurity components.

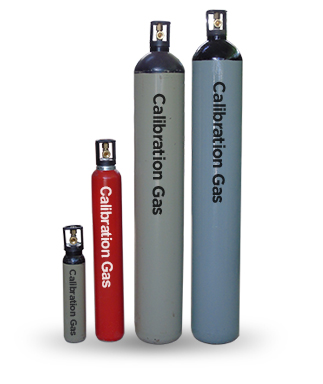

Here, we at CSL are constantly developing certified calibration gas standards prepared gravimetrically (ISO 6142) and analyzed on very accurate Gas Chromatography.
Our Calibration gas Standards are widely used by CO2 manufacturer, system integrators & calibration service providers.
We offer all Types of calibration gases for CDQC analyzer systems.
Calibration Gas Mix / Standards for Total Sulfur Analyzer
Components | Concentration (v/v) or (mol/mol) | |||||
---|---|---|---|---|---|---|
Cal Gas 1 | Cal gas 2 | Cal Gas 3 | Cal Gas 4 | Cal Gas 5 | Cal gas 6 | |
Hydrogen Sulfide | 100 to 200 PPB | 100 to 200 PPB | 1 ppm | 1 to 20 ppm | - | - |
Methyl Mercaptan | - | - | 1 ppm | - | 1 to 20 ppm | - |
Methyl Ethyl Sulfide | - | - | 1 ppm | - | - | - |
Carbonyl Sulfide | - | - | 1 ppm | - | - | 1 to 20 ppm |
Carbon Disulfide | - | - | - | - | - | - |
Sulfur Dioxide | - | - | - | - | - | - |
Dimethyl Sulfide | - | - | - | - | - | - |
Nitrogen | BALANCE % | - | Balance % | Balance % | Balance % | Balance % |
Carbon Dioxide | - | BALANCE % | - | - | - | - |
Calibration Gas Standards for Total Hydrocarbon in CO2
Components | Concentration (v/v) or (mol/mol) | ||
---|---|---|---|
Cal Gas 1 | Cal gas 2 | Cal Gas 3 | |
Methane | 10 to 20 ppm | 20 to 80 ppm | 20 to 40 ppm |
Ethane | 10 to 20 ppm | - | - |
Ethylene | 10 to 20 ppm | - | - |
Propane | 10 to 20 ppm | - | 20 to 40 ppm |
Propylene | 10 to 20 ppm | - | - |
N-Butane | 10 to 20 ppm | - | - |
Iso-Butane | 10 to 20 ppm | - | - |
N-Pentane | 10 to 20 ppm | - | - |
Iso-Pentane | 10 to 20 ppm | - | - |
1-butene | 10 to 20 ppm | - | - |
1-Pentene | 10 to 20 ppm | - | - |
Nitrogen | Balance % | - | Balance % |
Carbon Dioxide | - | Balance % | - |
Calibration Gas Standards for Trace Aromatics & Oxygenates
Components | Concentration (v/v) or (mol/mol) | ||
---|---|---|---|
Cal Gas 1 | Cal gas 2 | Cal Gas 3 | |
Acetaldehyde | 0.1 ppm | 1 to 2 ppm | 1 to 2 ppm |
Methanol | 20 ppm | 5 to 10 ppm | - |
Ethanol | 10 ppm | - | - |
benzene | 1 ppm | 80 to 100 PPB | 80 to 100 PPB |
Ethane | 1 ppm | - | - |
Ethylene | 1 ppm | - | - |
N-Butane | 1 ppm | - | - |
Propane | 1 ppm | - | - |
Propylene | 1 ppm | - | - |
P-xylene | 1 ppm | - | - |
Toluene | 1 ppm | - | - |
Methane | 5 ppm | - | - |
Nitrogen | Balance % | Balance % | Balance % |
(For Other Combinations, please contact us)
Calibration Gas Standards for Trace Oxygen
- We can supply as low as 2 ppm O2 in CO2 or N2
- Standard Calibration Gas for CDQC is 20 to 40 ppm Oxygen in Carbon Dioxide
- The CO2 used will be free of HCs and Sulfides
Gas Standard for Zero Calibration of Total HCs/ Sulfides
- Mainly High Pure Carbon dioxide is used for Zero Calibration
- We supply High Purity Carbon Dioxide with traces of known impurities
- Purity of Carbon dioxide (CO2) is 99.999%
High Pure Hydrogen (with <1 ppm THC) as Fuel Gas
